Materials:
Acrylic, air pump, balloon, Arduino, relay, TFT display
Acrylic, air pump, balloon, Arduino, relay, TFT display

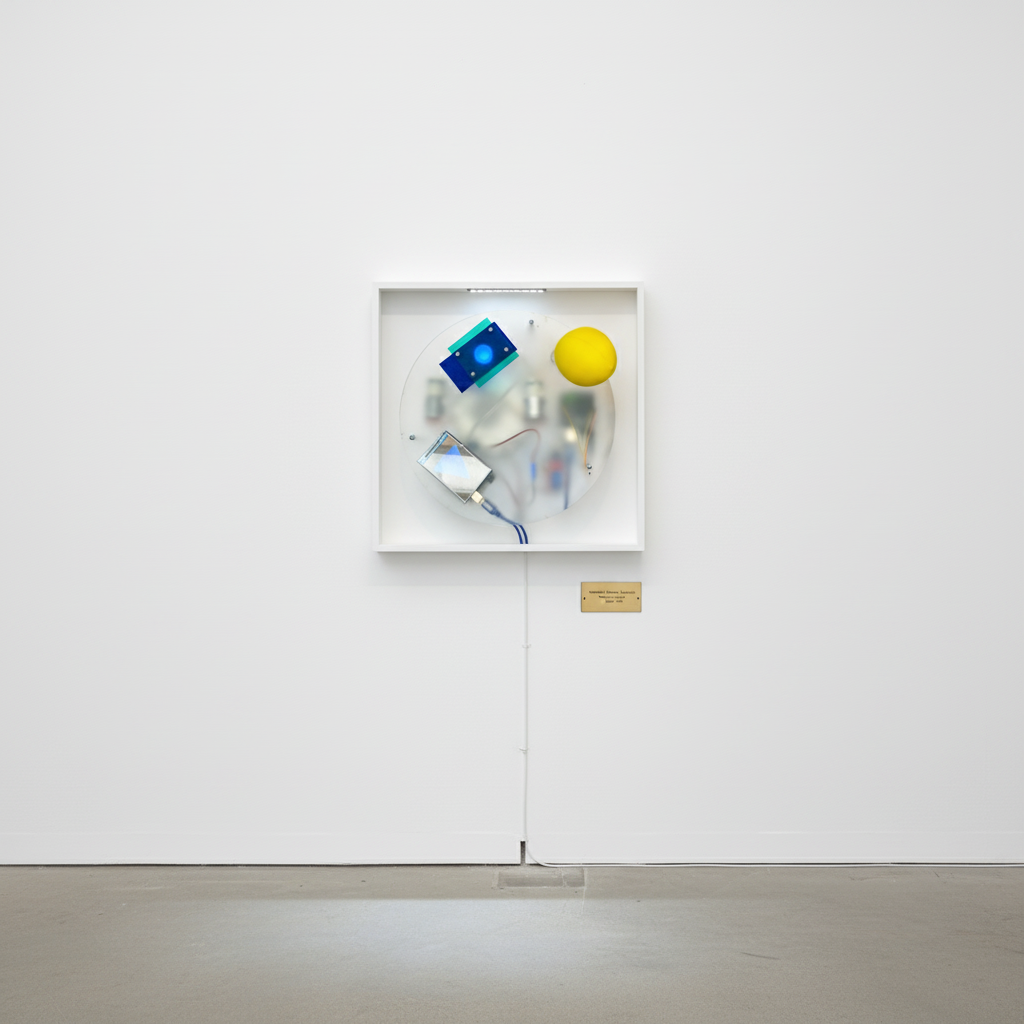

The human body has its own rhythms that represent time without explicitly telling it. The Vital Clock serves to construct a clock that represents human vitals in a visual way and functions as an abstract clock.
The LED mimics the eyes, as human adults blink approximately 12 times per minute, and each blink lasts about 1/3 of a second, LED will blink accordingly. The balloon mimics inhaling and exhaling, associated with the normal breathing rate for an adult at rest, which is 8 to 16 breaths per minute. The TFT display mimics the frequency of yawning, which is much less common compared to blinking and breathing. Humans yawn five to 10 times a day, and with every possible yawn, a circle will be drawn on the screen.
The LED mimics the eyes, as human adults blink approximately 12 times per minute, and each blink lasts about 1/3 of a second, LED will blink accordingly. The balloon mimics inhaling and exhaling, associated with the normal breathing rate for an adult at rest, which is 8 to 16 breaths per minute. The TFT display mimics the frequency of yawning, which is much less common compared to blinking and breathing. Humans yawn five to 10 times a day, and with every possible yawn, a circle will be drawn on the screen.
